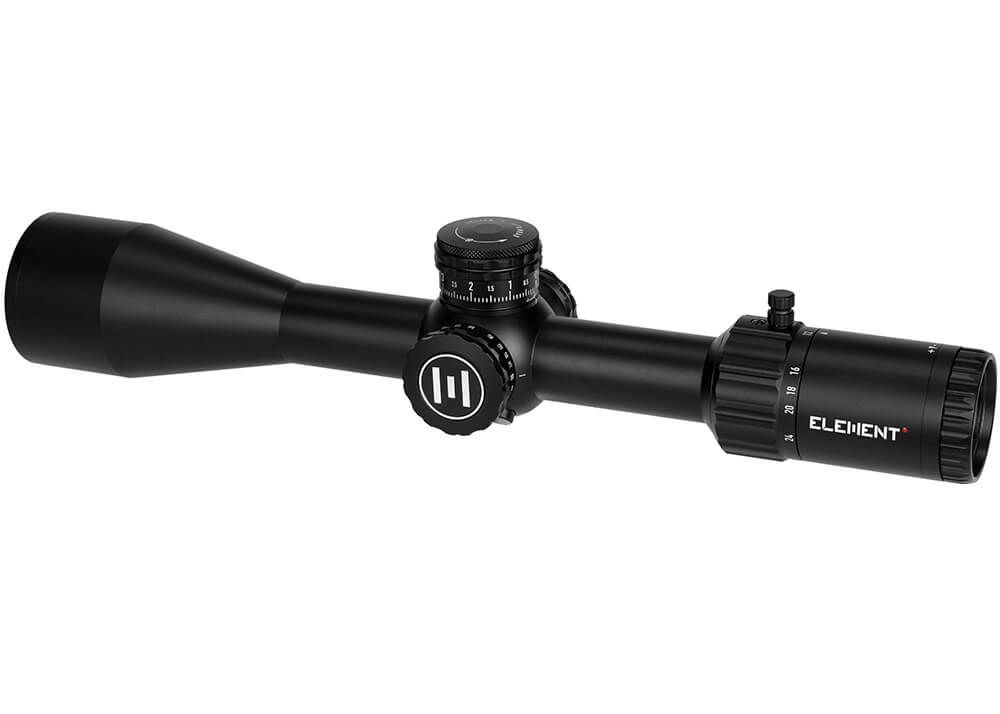

The HELIX GEN2 continues the legacy of our original HELIX line of riflescopes, with industry-leading reliability and performance taken to the next level through new features and further design improvements.
The important things come first: reliable tracking, intelligent reticles, innovative features, and a user-friendly turret system. The turret system is tool-free and now features 8 MRAD or 20 MOA per revolution. The zero-stop mechanism ensures you never lose track of where you are, and the First Focal Plane reticle ensures precise reticle calibration at all magnifications. Optically, the familiar 4x erector system is complemented by a new design that allows for a larger field of view and a more forgiving eye-box. Stringent quality control checks are in place to ensure repeatable performance under harsh conditions—and if something goes wrong, our Platinum Lifetime Warranty has you covered!
MAGNIFICATION RANGE
6-24x
TUBE DIAMETER
30mm
OBJECTIVE LENS DIA.
50mm
EXIT PUPIL
8.3-2.1mm
EYE RELIEF
3.7-4” (94-102mm)
FIELD OF VIEW
20.1-5.1 ft @ 100yds
(6.7-1.7 m @ 100m)
CLICK VALVE
1/4 MOA
(20 MOA/rev)
1/10 MRAD
(8 MRAD/rev)
ELEVATION ADJ. RANGE
65 MOA
18.9 MRAD
WINDAGE ADJUSTMENT RANGE
40 MOA
11.6 MRAD
MINIMUM PARALLLAX
10 YDS
10 M
LENGTH
14.0 Inches
356 mm
WEIGHT
29.2 oz
830g
