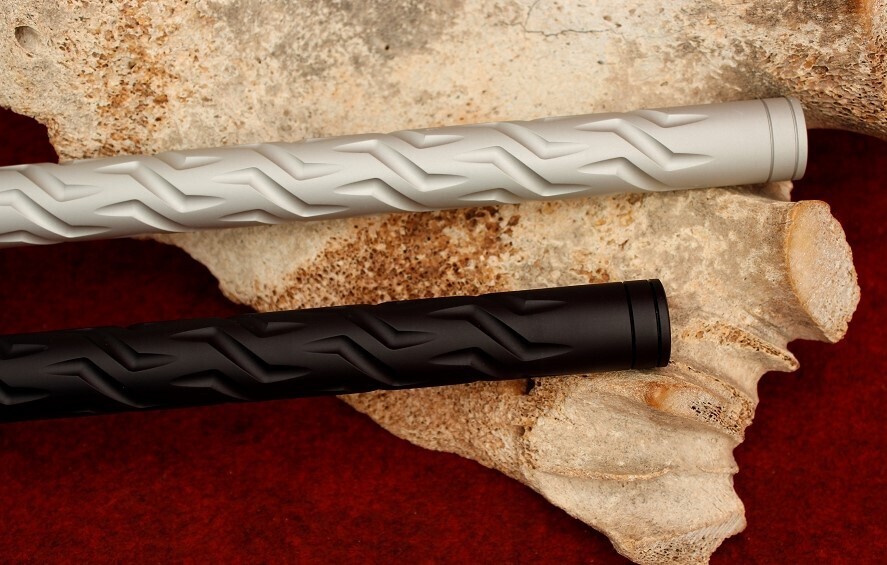

KIDD .22LR Lightweight 762 Fluted Aluminum Sleeved Barrel

Upgrade your 10/22® with the KIDD 762 fluted lightweight barrel—delivering true bull-barrel aesthetics, match-grade precision, and reduced front-end weight for faster handling.

---

What Sets It Apart

Bull profile where it counts
A .920" diameter for the first 2 inches provides the stiffness and visual presence of a traditional bull barrel, then transitions to .870" toward the muzzle to reduce unnecessary mass.

Lightweight, repeatable accuracy
Engineered to balance rigidity and handling, the 16.5" configuration weighs approximately 1 lb 14 oz while maintaining stable, repeatable performance.

Stainless core with fluted sleeve
A stainless-steel core ensures structural integrity and thermal stability. The fluted outer sleeve (black or silver) enhances rigidity while delivering the classic bull-barrel profile.

Match-grade manufacturing
Barrels are bored and rifled by Lothar Walther, then precision-finished and hand-machined by Tony Kidd. A proprietary chamber reamer ensures smooth feeding and reliable cycling.

Refined extractor and crown geometry
Includes a precision convex extractor slot for consistent extraction and an 11° crown with double ring at the muzzle, KIDD marked.

Proven accuracy guarantee
Capable of ½" groups at 50 yards (5-shot group), verified within this weight class.

Threading option
Optional 1/2"-28 muzzle threading available, with protective cap.

---

Key Specifications

• Fit: Slip-fit for Ruger® 10/22® and most aftermarket receivers
• Length / weight: 16.5" – 1 lb 14 oz
• Profile: .920" (first 2") stepping to .870"
• Construction: Stainless-steel core with fluted sleeve (black or silver)
• Twist rate: 1:16 (.22 LR optimized)
• Crown: 11° with double ring, KIDD marked
• Extractor slot: Convex design
• Threading: 1/2"-28
• Accuracy guarantee: ½" at 50 yards (5-shot group)

---

Barrel Weight

• 16.5" fluted lightweight — 1 lb 14 oz

---

Fitment & Barrel Alignment

Barrel droop is typically caused by inconsistent tenon-to-receiver engagement. This design mitigates that through:

• Tight-tolerance tenon fit with consistent diameter
• Precisely machined shoulder with relief cut for full receiver contact
• Proper support that maintains alignment under load

When installed correctly, v-block screws only need to be snug (~10 in-lb)—enough to prevent movement without inducing distortion.

---

Installation Notes

• Clean paint or residue from the receiver mortise (especially on aftermarket receivers)
• Apply a light coat of grease to the tenon—minimal application only
• Insert while aligning the extractor slot; use a rubber mallet if needed to fully seat
• Verify alignment by matching the receiver’s bottom flat with the barrel’s v-block cutout

---

Performance & Maintenance

• Fire two magazines before evaluating accuracy; repeat when changing ammunition
• Maintain a clean chamber, but avoid excessive bore cleaning
• Typical bore cleaning interval: ~500 rounds, depending on ammunition

---

This barrel is engineered for shooters who want bull-barrel stability, reduced weight, and dependable match accuracy in a refined, field-ready package.
