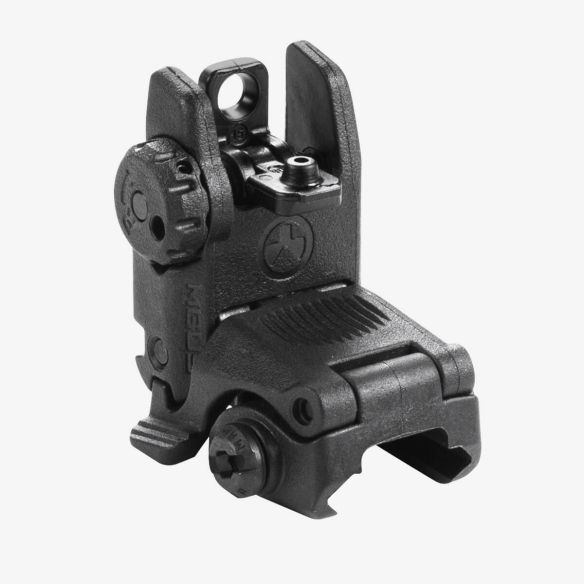

Magpul MBUS® Sight – Rear
SKU MAG248-BLK
€0.00
Sold out
Price incl. Vat (23%) €0.00
Sold out
Save this product for later
Magpul MBUS® Sight – Rear
Product Details
Product Details
The MBUS (Magpul® Back-Up Sight) is a low-cost, color injection molded, folding back-up sight. The dual aperture MBUS Rear Sight is adjustable for windage and fits most 1913 Picatinny rail equipped weapons, but is specifically tailored to the AR15 / M16 platform.
Made in the USA.
Technical Specifications
| Position | Rear |
|---|---|
| Height above rail, stowed | ~0.51 in. |
| Length, deployed | 1.5 in. |
| Length, stowed | 2.6 in. |
| Weight, w/ hardware | 1.3 oz. |
| Other Specs |
Center of aperture to top of rail: 1.42 in. WINDAGE ADJUSTMENT ~0.7 MOA (0.754"/100m) per click with a 14.5" sight radius ~0.5 MOA (0.547"/100m) per click with a 20" sight radius |
SPRING-LOADED FLIP UP SIGHT
Spring-loaded flip up sight easily activated from either side or by pressing the top
Protective wings shield the dual, same plane flip apertures
Sight can still be folded with either large or small aperture in position
Detent knob easily and positively adjusts windage
IMPACT-RESISTANT POLYMER CONSTRUCTION
Polymer construction provides light weight and resists operational abuse
DETENT AND SPRING PRESSURE KEEPS SIGHT ERECT
Detent and spring pressure keeps sight erect but allows for unobstructed folding under impact, etc.
CLAMPS TO MOST MIL-STD-1913 PICATINNY RAILS
Clamps to MIL-STD-1913 Picatinny/STANAG 4694 receiver rail and provides the same height-over-bore as standard A2 irons
You May Also Like
Sold out

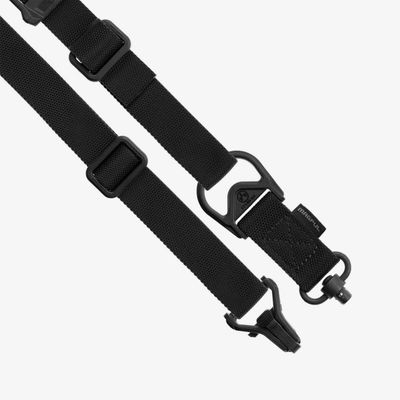

Magpul MS4® Dual QD Sling GEN2
